Local Configuration Manager (LCM)

The Local Configuration Manager (LCM) is a background service that continuously evaluates a DSC configuration document against the current state of the system. It can detect drift and optionally remediate it automatically.

Architecture

The LCM runs as a platform-native service:

  • Windows — registered as a Windows Service (OpenDscLcm)
  • Linux — runs as a systemd service or console application
  • macOS — runs as a launchd service or console application

Internally, the LCM has two main components:

  1. LcmWorker — the main background loop that manages scheduling and mode switching.
  2. DscExecutor — invokes the dsc CLI (dsc config test and dsc config set) and parses the structured output.

Operational modes

Monitor mode

In Monitor mode, the LCM periodically runs dsc config test against the configuration document. It logs whether the system is in the desired state but doesn't make changes.

Use Monitor mode to:

  • Detect configuration drift without risk of unintended changes.
  • Build confidence in a configuration before enabling remediation.
  • Generate compliance reports for auditing.

Remediate mode

In Remediate mode, the LCM first runs dsc config test. If drift is detected, it runs dsc config set to bring the system back into compliance.

Use Remediate mode to:

  • Automatically correct configuration drift.
  • Enforce desired state continuously.
  • Maintain compliance without manual intervention.

Configuration sources

The LCM supports two sources for its configuration document:

Local source

The LCM reads the configuration document from a file path on the local system. This is useful for standalone machines or when configurations are deployed through other means (file shares, CI/CD artifacts, etc.).

{
  "LCM": {
    "ConfigurationSource": "Local",
    "ConfigurationPath": "C:\\DSC\\main.dsc.yaml"
  }
}

Pull source

The LCM downloads its configuration from an OpenDSC Pull Server. The Pull Server manages versioned configurations, parameter merging, and compliance reporting.

{
  "LCM": {
    "ConfigurationSource": "Pull",
    "PullServer": {
      "ServerUrl": "https://pull-server.example.com",
      "RegistrationKey": "shared-secret",
      "CertificateSource": "Managed",
      "ReportCompliance": true
    }
  }
}

For Pull mode setup, see the Pull Server tutorial.

Configuration precedence

The LCM reads configuration from multiple sources in the following priority order (highest first):

  1. Command-line arguments
  2. Environment variables (prefixed with LCM_)
  3. System-wide configuration file:
  4. Windows: %ProgramData%\OpenDSC\LCM\appsettings.json
  5. Linux: /etc/opendsc/lcm/appsettings.json
  6. macOS: /Library/Preferences/OpenDSC/LCM/appsettings.json
  7. Bundled appsettings.json in the service directory

Dynamic mode switching

The LCM monitors its configuration file for changes. When the file is updated, the LCM gracefully stops the current evaluation cycle and reconfigures itself. You can switch between Monitor and Remediate mode without restarting the service.

Certificate management

When operating in Pull mode, the LCM manages client certificates for mTLS authentication with the Pull Server.

Managed certificates

By default, the LCM generates and manages a self-signed client certificate. The certificate is stored in the LCM's configuration directory and automatically rotated based on the CertificateRotationInterval setting.

Platform certificates

For enterprise environments, the LCM can load a certificate from the system certificate store by thumbprint. This is useful when your organization has a PKI infrastructure.

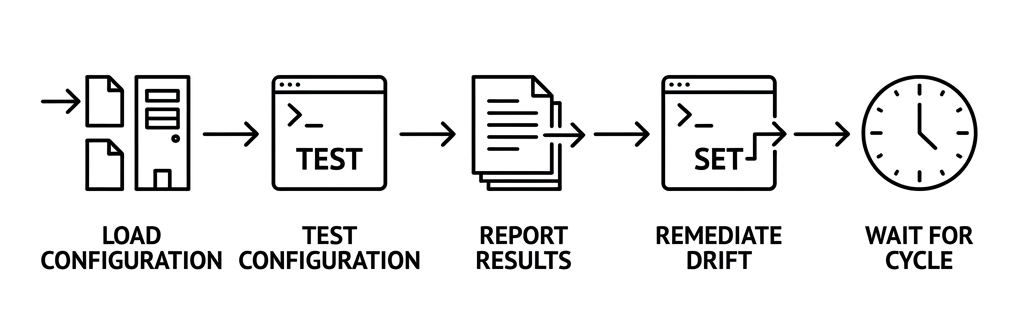

Evaluation cycle

Each evaluation cycle follows this sequence:

  1. Load configuration — read from local file or download from Pull Server.
  2. Test — run dsc config test against the configuration document.
  3. Report — log the test results. If Pull mode is active and ReportCompliance is true, submit a compliance report to the Pull Server.
  4. Remediate (Remediate mode only) — if drift was detected, run dsc config set.
  5. Wait — sleep for the ConfigurationModeInterval before the next cycle.

LCM evaluation cycle
