Pull Server overview

The OpenDSC Pull Server is an ASP.NET Core application that provides centralized configuration management for DSC v3 nodes. It combines a REST API for automation with a Blazor web UI for interactive management.

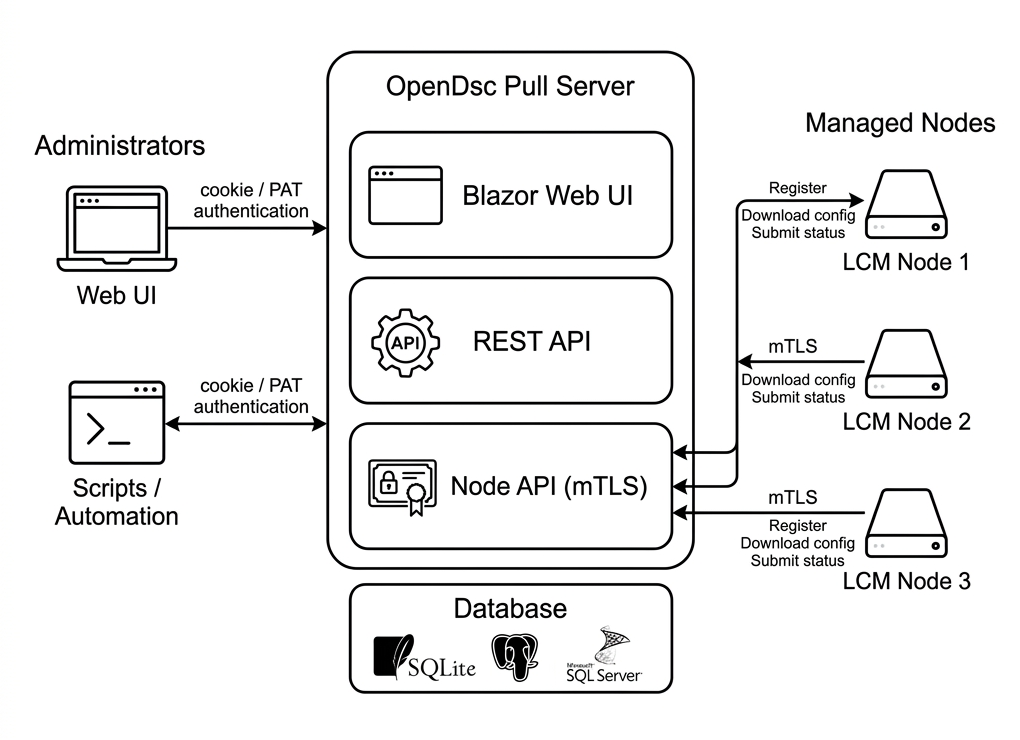

Architecture

The Pull Server has three planes of interaction:

  • Web UI — a Blazor Server application for administrators to manage configurations, nodes, parameters, and reports through a browser.
  • REST API — a minimal API surface for automation, scripting, and LCM communication.
  • Node API — the subset of REST endpoints used by managed nodes (the LCM) for registration, configuration download, and report submission, authenticated via mTLS.

Pull Server architecture

Key subsystems

Node registration

Managed nodes register with the Pull Server using a shared registration key. During registration, the node presents its FQDN and a client certificate. The server records the node and returns a unique NodeId. After registration, the node authenticates using mutual TLS (mTLS).

For more details, see Authentication.

Configuration management

Configurations are versioned YAML or JSON documents that define the desired state of managed nodes. The Pull Server provides a full lifecycle:

  1. Upload — submit configuration files.
  2. Draft — new versions start in Draft status for review.
  3. Publish — promote a version to make it available to nodes.
  4. Assign — associate a configuration (or composite configuration) with one or more nodes.

For more details, see Configuration management.

Composite configurations

Composite configurations combine multiple individual configurations into a single ordered deployment unit. This allows different teams to manage different aspects of a system independently.

Parameter merging

Parameters are key-value data files that configuration documents can reference. The Pull Server merges parameters across a configurable scope hierarchy:

Default → Custom scopes (by precedence) → Node

Narrower scopes override broader ones. The server tracks provenance so you can see where each merged value originated.

For more details, see Parameter merging.

Compliance reporting

The LCM submits compliance reports after each evaluation cycle. The Pull Server stores these reports and presents them in the web UI alongside node status.

Role-based access control

The Pull Server implements fine-grained RBAC with:

  • Users — individual accounts (password or PAT authentication).
  • Groups — collections of users for easier permission management.
  • Roles — sets of authorization policies assigned to users or groups.

Policies control access at the resource level (e.g., nodes.read, configurations.write).

Supported databases

The Pull Server supports three database backends:

Database Use case
SQLite Development, small deployments (default)
PostgreSQL Production, multi-server deployments
SQL Server Enterprise environments

Configure the database in appsettings.json using the ConnectionStrings:DefaultConnection and DatabaseProvider settings.

API documentation

When running in development mode, the Pull Server serves interactive API documentation at /scalar/v1. The OpenAPI schema is available at /openapi/v1.json.
