Pull Server authentication

The OpenDsc Pull Server uses a multi-tier authentication model to secure communication between managed nodes, automation scripts, and the web UI.

Authentication tiers

Tier Used by Mechanism
Registration key New nodes Shared secret for initial registration
mTLS (mutual TLS) Registered nodes Client certificate
Personal Access Token Scripts, CI/CD Bearer token in Authorization header
Cookie/Session Web UI users Password login with session cookie

Node authentication flow

Node authentication is a two-phase process:

Phase 1: Registration

When a node first contacts the Pull Server, it doesn't have a NodeId. The LCM sends a registration request with:

  • The node's FQDN.
  • A registration key (shared secret).
  • A client certificate (self-signed or from the platform store).

The server validates the registration key, stores the certificate thumbprint and subject DN, and returns a unique NodeId.

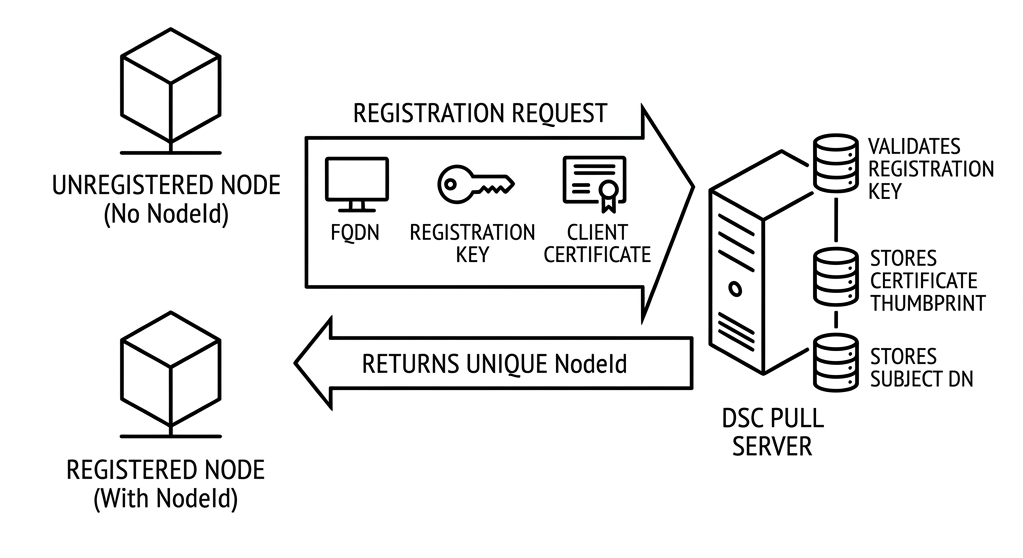

Node registration flow

Phase 2: mTLS

After registration, the LCM uses its client certificate for all subsequent requests. The server's CertificateAuthHandler validates the certificate thumbprint against the stored record in the database.

The Kestrel web server is configured with ClientCertificateMode.AllowCertificate so that browser traffic isn't blocked — certificate validation is enforced selectively for node API endpoints.

Certificate rotation

Nodes can rotate their client certificates through the PUT /api/v1/nodes/{nodeId}/rotate-certificate endpoint. The rotation is atomic: the server updates the certificate information and immediately invalidates the old certificate.

Managed certificates

When the LCM's CertificateSource is set to Managed, it generates and manages a self-signed certificate. The LCM handles rotation automatically based on the CertificateRotationInterval.

Platform certificates

When CertificateSource is Platform, the LCM loads a certificate from the system certificate store by thumbprint. This is intended for enterprise environments with existing PKI infrastructure.

Personal Access Tokens

Personal Access Tokens (PATs) provide Bearer token authentication for API access. PATs are associated with a user account and inherit that user's roles and permissions.

Authorization: Bearer <token>

PATs have an expiration date and can be revoked from the web UI or API.

Web UI authentication

The web UI uses password-based authentication with session cookies. After initial setup, the default admin account must have its password changed before the server can be used.
