Configuration management

The Pull Server manages DSC configuration documents through a versioned lifecycle. Configurations progress from upload through draft review to publishing, and are then assigned to managed nodes.

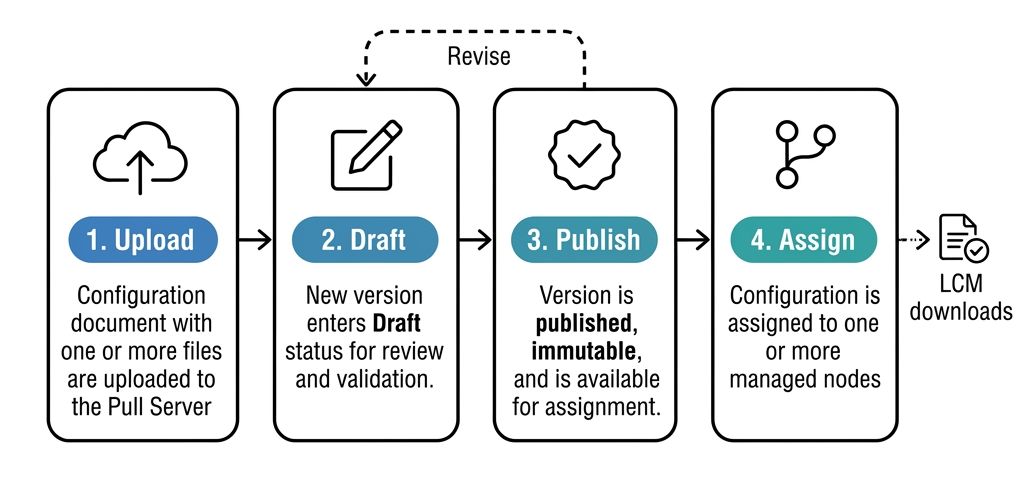

Configuration lifecycle

Configuration lifecycle

1. Upload

A configuration is uploaded as one or more files with a designated entry point. The entry point is the primary configuration document that DSC processes. Configurations can include multiple files for complex setups (such as included documents or shared definitions).

2. Draft

New versions are created in Draft status. Draft configurations can be reviewed and validated before being made available to nodes. You can upload multiple drafts and discard them without affecting running nodes.

3. Publish

When a version is ready, publish it to make it available for assignment. Published versions are immutable — to make changes, upload a new version.

4. Assign

Assign a published configuration (or composite configuration) to one or more nodes. When the LCM next checks in, it downloads the assigned configuration.

Semantic versioning

Configurations use semantic versioning (MAJOR.MINOR.PATCH). The first uploaded version defaults to 1.0.0. Subsequent versions can be specified explicitly during upload.

Composite configurations

A composite configuration combines multiple individual configurations into a single ordered deployment unit. Each member has an explicit order position that determines the sequence in which configurations are applied.

Use composite configurations when:

  • Different teams own different configuration documents.
  • You want to update one part of a system's configuration without republishing others.
  • You need a consistent bundle of configurations across a fleet.

When a composite configuration is assigned to a node, the LCM receives all member configurations bundled together. The DSC engine processes them in the declared order.

Configuration change detection

The Pull Server computes a checksum for each published configuration version. The LCM stores the checksum locally and uses it to detect changes:

  1. The LCM calls GET /api/v1/nodes/{nodeId}/configuration/checksum.
  2. If the checksum matches the local copy, no download is needed.
  3. If the checksum differs, the LCM downloads the full configuration bundle.

This minimizes network traffic — configuration documents are only transferred when they change.
