Pull Server

The OpenDSC Pull Server manages configuration delivery to registered nodes. It provides a central service for distributing DSC configuration documents, node registration, and compliance reporting.

Install

winget install OpenDsc.Server

Note

Debian and RPM package support is coming soon. In the meantime, use the archive install below.

version='0.5.1'
archive="OpenDSC.Server.Linux.$version.tar.gz"
install_dir="$HOME/OpenDSC.Server"
mkdir -p "$install_dir"
curl -L -o "$archive" \
  "https://github.com/opendsc/opendsc/releases/download/v$version/$archive"
tar -xzf "$archive" -C "$install_dir"
export PATH="$install_dir:$PATH"
echo 'export PATH="$HOME/OpenDSC.Server:$PATH"' >> ~/.bashrc

Note

Homebrew package support is coming soon. In the meantime, use the archive install below.

version='0.5.1'
archive="OpenDSC.Server.macOS.$version.tar.gz"
install_dir="$HOME/OpenDSC.Server"
mkdir -p "$install_dir"
curl -L -o "$archive" \
  "https://github.com/opendsc/opendsc/releases/download/v$version/$archive"
tar -xzf "$archive" -C "$install_dir"
export PATH="$install_dir:$PATH"
echo 'export PATH="$HOME/OpenDSC.Server:$PATH"' >> ~/.zshrc

Note

Docker support is coming soon. In the meantime, use the Windows, Linux, or macOS install instructions.

Login

Open your browser and navigate to http://localhost:5000. The web UI prompts you to sign in.

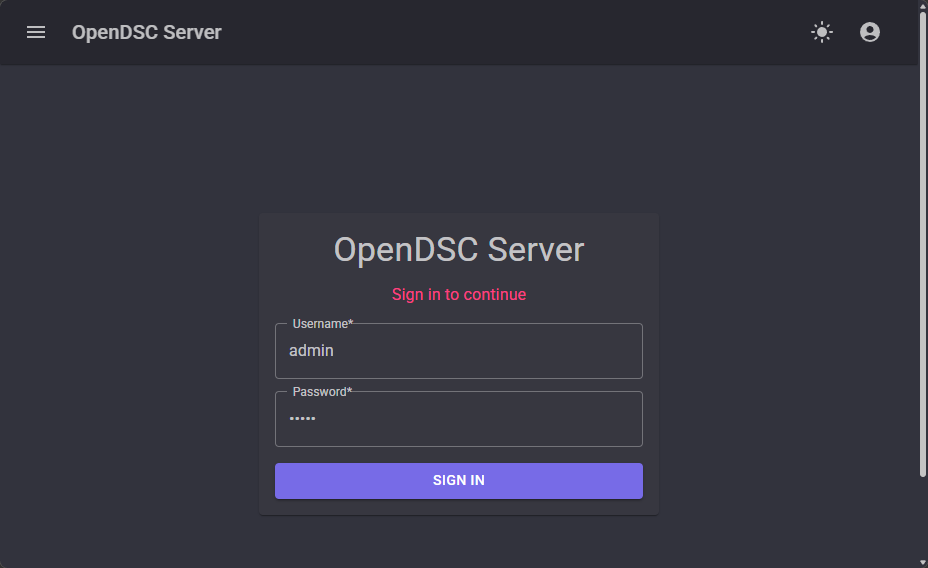

OpenDSC login page

Sign in with the default administrator credentials:

Field Value
Username admin
Password admin

Create Registration Key

Nodes need a registration key to authenticate during their initial registration with the Pull Server. After registration, nodes use client certificates for authentication.

  1. Navigate to Settings → Registration Keys.
  2. Click Create.
  3. Enter a description, such as Lab registration.
  4. Click Save.
  5. Copy the key value that appears and save it securely.

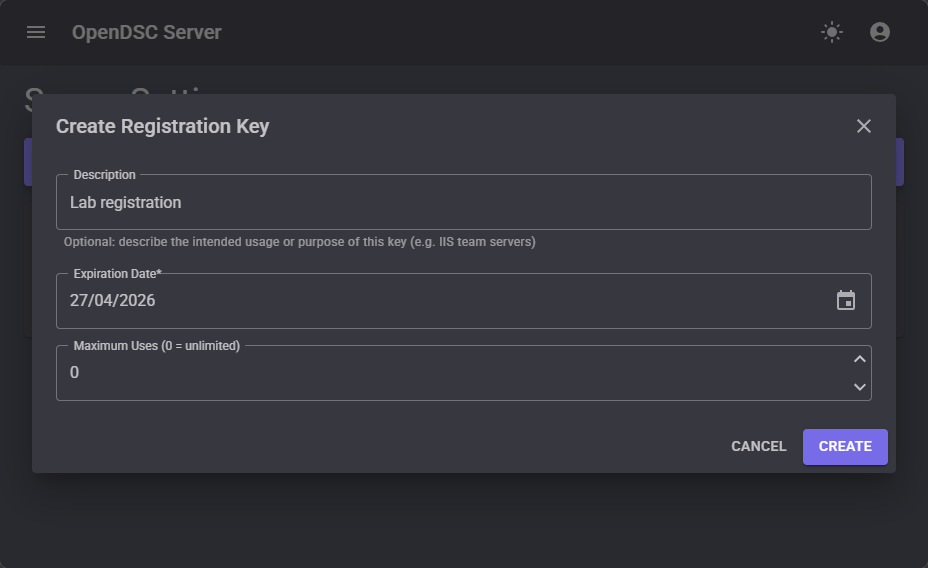

Create registration key

Configure LCM

Update the LCM configuration file on the managed node so it pulls its desired state from the Pull Server. The LCM reads appsettings.json from its default location on each platform.

$env:ProgramData\OpenDSC\LCM\appsettings.json

/etc/opendsc/lcm/appsettings.json

/Library/Preferences/OpenDSC/LCM/appsettings.json

Below is a platform-agnostic example of the LCM configuration for Pull Server mode. Copy it into the file above and replace <registration-key> with the key generated in the previous step.

{
  "LCM": {
    "PullServer": {
      "ServerUrl": "http://localhost:5000",
      "RegistrationKey": "<registration-key>",
      "CertificateSource": "Managed",
      "ReportCompliance": true
    }
  }
}

Server Url

This is the address of the Pull Server, for example http://localhost:5000. It must be provided when ConfigurationSource is set to Pull.

Registration Key

The RegistrationKey is the secret used by the node during initial registration.

CertificateSource

CertificateSource controls how the node obtains its client certificate for mTLS authentication.

  • Managed — the LCM provisions and manages the client certificate automatically.
  • Platform — the node uses a platform-managed certificate store or external certificate management. Use this if you already manage certificates using an enterprise CA.

Default: Managed.

Report Compliance

When ReportCompliance is set to true, the LCM sends compliance data back to the Pull Server. If omitted, compliance reporting is not enabled.

Default: false.

Verify Registered Node

Navigate to the Nodes page. Your machine should appear with its FQDN and registration timestamp.

Configuration Management

Upload configuration

  1. Navigate to Configurations.
  2. Click Create.
  3. Enter the name LabConfig.
  4. Set the entry point to main.dsc.yaml.
  5. Upload the main.dsc.yaml file.
  6. Click Save.

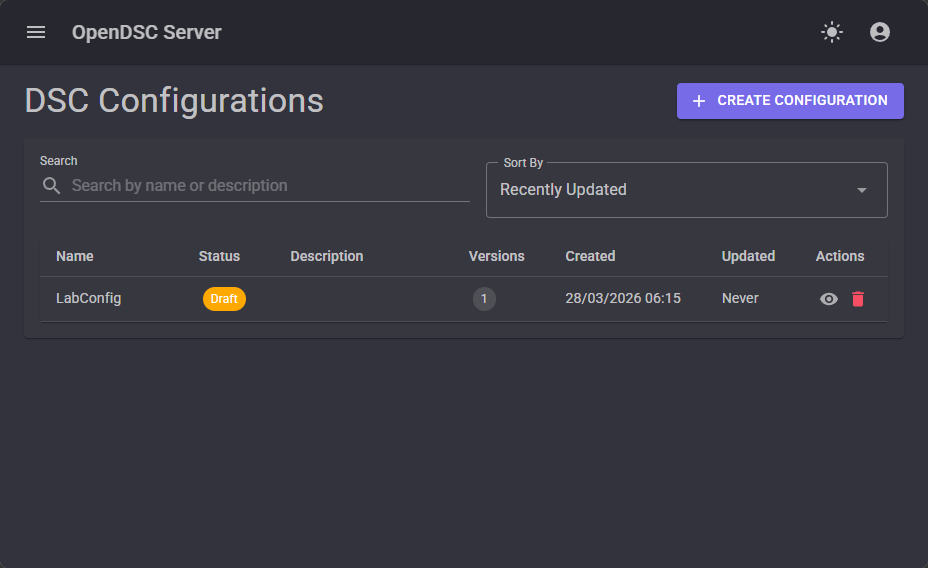

Upload configuration

Publish the configuration

The configuration is created in Draft status. Publish it to make it available to nodes:

  1. On the Configurations page, click on LabConfig.
  2. Click Publish next to version 1.0.0.

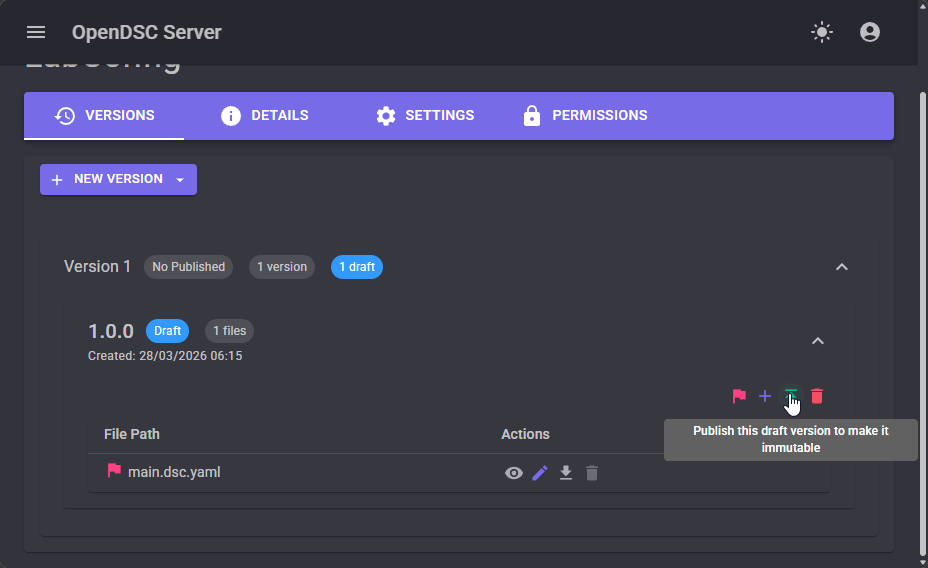

Publish configuration version

Assign the configuration to the node

  1. Navigate to Nodes.
  2. Click on your registered node.
  3. Under Configuration, select LabConfig.
  4. Click Save.

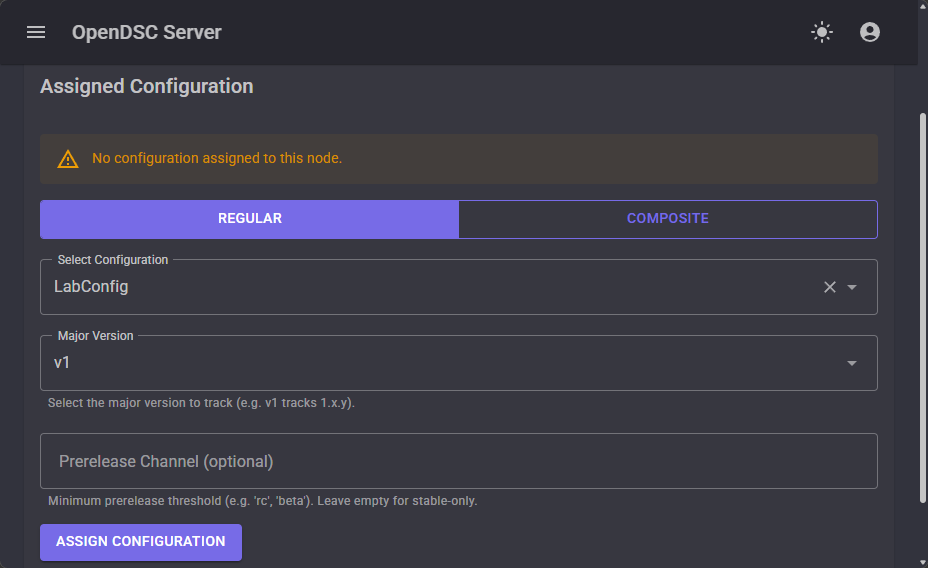

Assign configuration to node
